Vivid
Vivid provides spot and general illumination in retail and hospitality environments. Available in adjustable frames to suit a variety of spaces. Designed with patented optics with smooth uniform output.
Technical Data

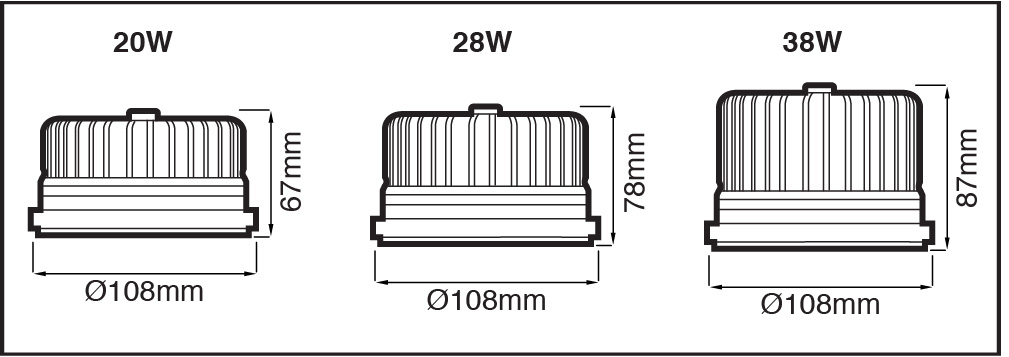

Wattages
20W / 28W / 38W
Input Voltage
220-240V, 50Hz
Output Current
20W: 500mA
28W: 700mA
38W: 950mA
CCT
3000K
4000K
CRI
>90
Beam Angle
13º / 24º / 38º / 60º
Module

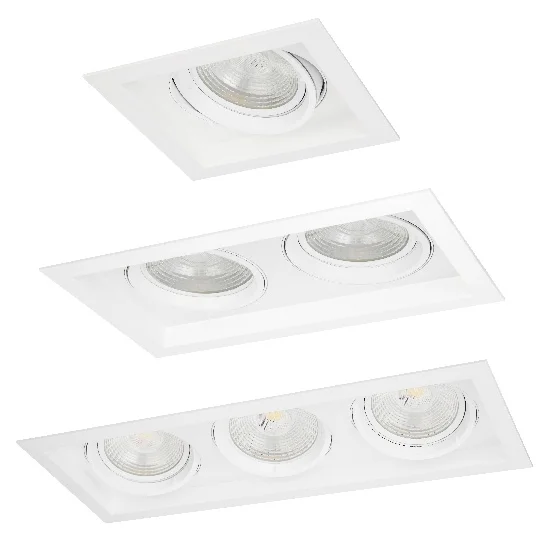

Single Unit / Duo Unit / Tri Unit

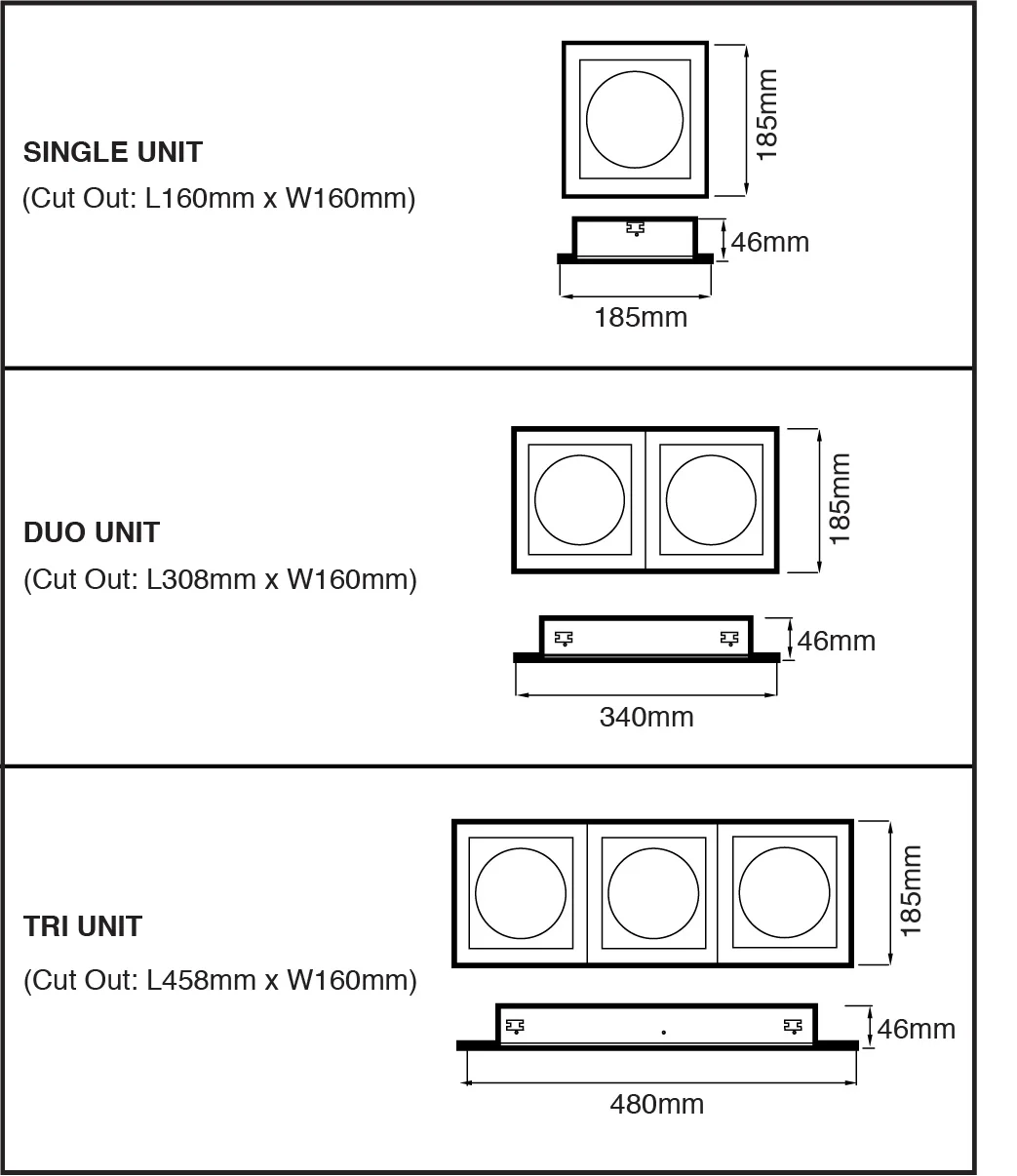

Cut Out
Single Unit:
L - 160mm, W - 160mm
Duo Unit:
L - 308mm, W - 160mm
Tri Unit:
L - 458mm, W - 160mm
Dimming
Leading / Trailing
Dali Dim
1-10V
Product Details
Application
General Illumination
Spot Lighting
Trim Colours
White
